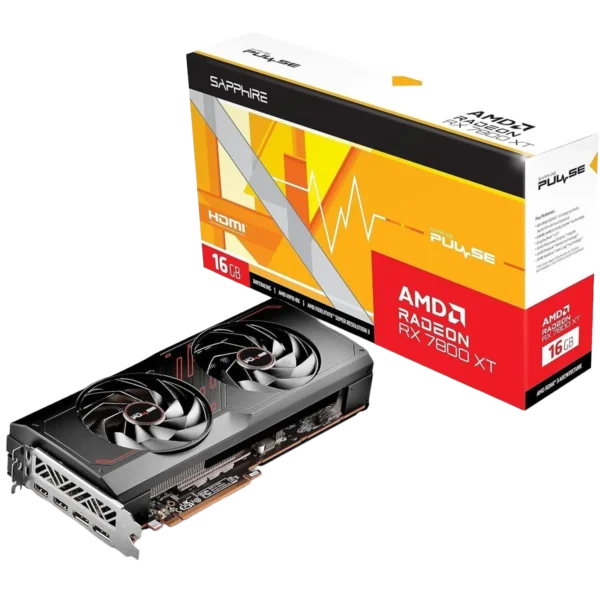

| SAPPHIRE PULSE AMD Radeon RX 7800 XT 16GB GDDR6 | |
|---|---|
| Specification | Details |
| GPU Architecture | RDNA 3 (5 nm) |
| Compute Units | 60 (3840 Stream Processors) |
| Engine Clocks | Game Clock: up to 2124 MHz Boost Clock: up to 2430 MHz |
| Infinity Cache | 64 MB |
| Ray Accelerators | 60 |
| Memory | 16 GB GDDR6, 256-bit, 19.5 Gbps effective (~624 GB/s) |
| Interface | PCI-Express 4.0 ×16 |
| Display Outputs | 2 × HDMI 2.1, 2 × DisplayPort 2.1 |
| Max Displays | 4 |
| Max Resolution | Up to 7680 × 4320 (8K) |
| Cooling & Build | Dual-X cooling with Dual-Ball Bearing fans, Angular Velocity Fan Blade, Composite Heatpipes, Metal Backplate, High TG Copper PCB, Ultra-High-Performance Capacitors |
| Power | Total Board Power: ~266 W Requires 2 × 8-pin power connectors |
| Recommended PSU | ~700 W |
| Dimensions | 2.5-slot, ATX • 280 × 128.75 × 52.6 mm |
| Features | Digital Power Design, TriXX Support & Boost, Radiance Display Engine, FidelityFX Super Resolution, DirectX 12 Ultimate, Vulkan-Optimized, Adrenalin Software Suite, FreeSync, DirectStorage |
| OS Support | Windows 10/11 (64-bit), Linux |
