Specification | Details |
---|---|

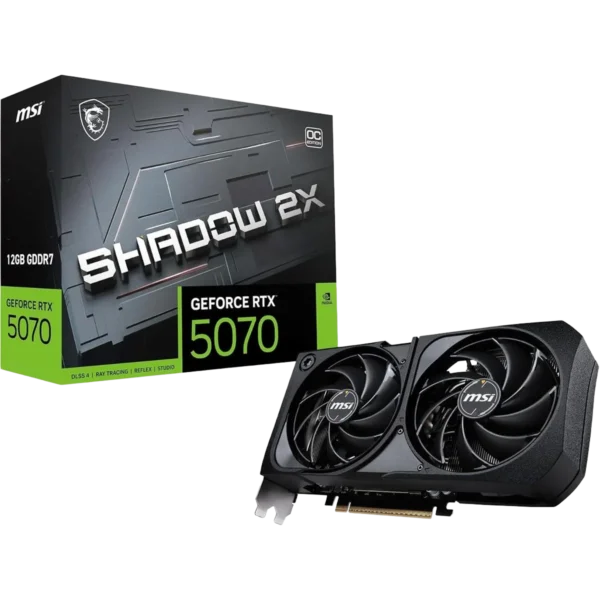

GPU | NVIDIA GeForce RTX 5070 (Blackwell architecture) |
CUDA Cores | 6,144 |
Clock Speeds | Extreme Performance: 2,557 MHz (via MSI Center) Boost: 2,542 MHz |
Memory | 12 GB GDDR7 (192-bit, 28 Gbps — ~672 GB/s) |
Memory Bandwidth | ~672 GB/s |
Interface | PCI-Express 5.0 ×16 |
Display Outputs | 3 × DisplayPort 2.1b, 1 × HDMI 2.1b |
Max Resolution | Up to 7680 × 4320 (8K) or 4K @480 Hz with DSC |
Power Connector | 1 × 16-pin |
Board Power (TDP) | 250 W |
Recommended PSU | 650 W |
Dimensions (L × W × H) | 231 × 126 × 50 mm |
Weight | 724 g (card) / 1,107 g (packaged) |
Cooling & Build | Dual TORX Fan 5.0, nickel-plated copper baseplate, Core Pipes, reinforced metal structure, Zero Frozr, airflow vented backplate |
APIs & Features | DirectX 12 Ultimate, OpenGL 4.6, DLSS 4, NVIDIA Reflex 2 (Frame Warp), RTX (4th-Gen), Tensor (5th-Gen), NVIDIA ACE, Studio tools, 9th-Gen NVENC, SFF-ready |
Max Displays Supported | 4 |
