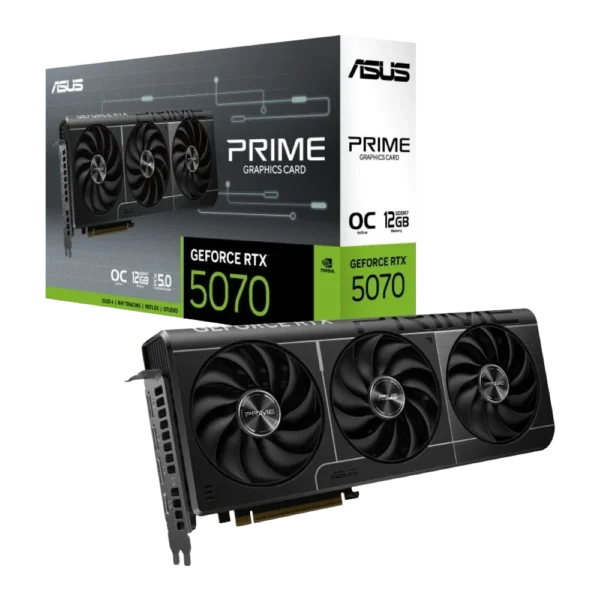

| ASUS PRIME RTX 5070 OC 12GB — Specifications | |
|---|---|
| GPU | NVIDIA GeForce RTX 5070 (Blackwell architecture) |
| CUDA / Shader Units | 6144 |
| Base Clock | ≈ 2,325 MHz |
| Boost Clock (Default) | ≈ 2,557 MHz |
| Boost Clock (OC Mode) | ≈ 2,587 MHz |
| Memory Size | 12 GB |
| Memory Type | GDDR7 |
| Memory Speed | 28 Gbps effective |
| Memory Bus | 192-bit |
| Memory Bandwidth | 672.0 GB/s |
| Bus / Interface | PCIe 5.0 ×16 |
| Power Connector | 1 × 16-pin |
| Recommended PSU | 750 W |
| Card Dimensions (L × W × H) | 304 × 126 × 50 mm (12 × 5 × 2 in) |
| Slot Width | 2.5 slots |
| Maximum Displays | 4 |
| Display Outputs | 1 × HDMI 2.1b, 3 × DisplayPort 2.1b |
| Max Digital Resolution | 7680 × 4320 |
| Power Consumption (Board / TGP) | ≈ 250 W |
