GPU |

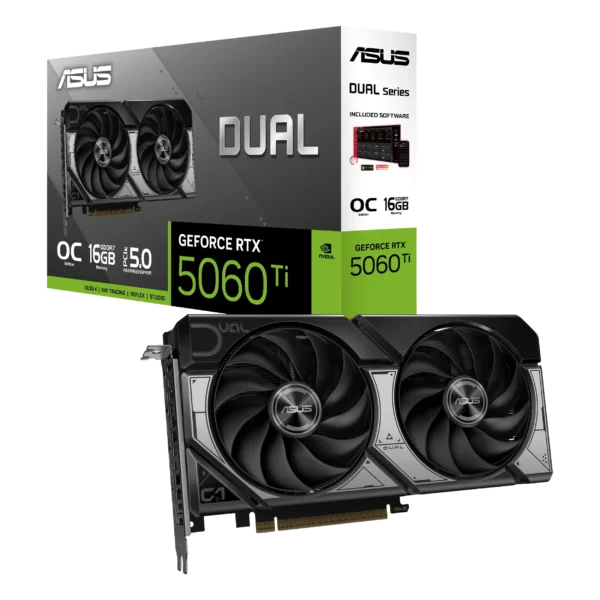

NVIDIA GeForce RTX 5060 Ti (Blackwell architecture) |
CUDA Cores |
4,608 |
Base Clock |
~2,407 MHz |
Boost Clock |
Up to 2,602 MHz (OC Mode) |
Memory |
16 GB GDDR7, 128-bit |
Memory Speed / Bandwidth |
28 Gbps (~448 GB/s) |
Interface |
PCI-Express 5.0 ×8 |
Display Outputs |
1 × HDMI 2.1b, 3 × DisplayPort 2.1b |
Maximum Resolution |
Up to 7680 × 4320 (8K) |
Power Connector |
1 × 8-pin PCIe |
TDP (Board Power) |
180 W |
Recommended PSU |
~550 W |
Cooling & Design |
Dual Axial-Tech fans, vented backplate, Dual BIOS |
Form Factor & Size |
2.5-slot, compact; 229 × 120 × 50 mm |
APIs & Features |
DirectX 12 Ultimate, OpenGL 4.6, Vulkan 1.4, CUDA 12.0, 4th-Gen RT Cores, 5th-Gen Tensor Cores, 9th-Gen NVENC, Dual-BIOS, GPU Tweak III |
Small Form-Factor Ready |
Yes |
